RCSJ100 PP Big Bag Compactor Pelletizing Line
(Capacity:300-350kg/h)
Waste PP Plastic Bag Raffia Bag Double Stage Plastic Pellet Making Machine is double stage plastic regenerative pelletizer, which is suitable for many kinds of plastic waste materials recycling and making pellets, such as clean woven/nonwoven bag material，PP plastic bag material，raffia bag material and etc. The film can be pressed in the compressor and then be pelletized.
Description:
Double stage pelletizing line is especially good for the raw material which contain high moisture, high impurities. The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and contamination; And the second extruder usually adopts small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.
Process flow:
Conveying feeding→ Metal detector →Film Agglomerator /Compactor →1# Degassing screw extruder →1# Hydraulic filer exchanger→2# screw extruder →2# Hydraulic filer exchanger→ Mould head →water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hopper→ Finished product packing.
1.Project information:
(1) Space: (L*W*H)-" I "type according to customer space (2) Electric standard: according to customer's working location (3) Water consumption: recycle using (4) Electric power: Openning power is:190kw/h, actually running power is 130kw/h (5) Labors: 1-2 workers (6) Color: Main body use grey and yellow(customized) |
2. Equipment list:
No. | Name | Quantity |
1 | Belt conveyor with metal detector | 1 |
2 | RCSS-800 Single shaft shredder | 1 |
3 | Belt conveyor | 1 |
4 | Compactor | 1 |
5 | RCSJ100/33 main extruder | 1 |
6 | Hydrualic screen exchanger | 2 |
7 | Die face cutting system | 1 |
8 | Water cooling tank | 1 |
9 | Dewatering machine | 1 |

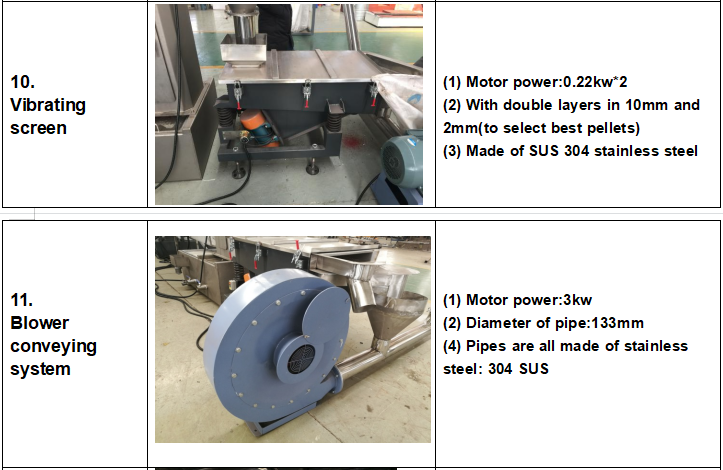

10 | Vibrating screen | 1 |
11 | Blower conveying system | 1 |
12 | Storage hopper | 1 |
13 | Electric panel | 1 |
3. Technical parameters:
(The pictures are for another case,it is only for reference)
Spare Parts for free:
NO | Name | QTY |
1 | Ampere meter | 2 |
2 | Thermocouple | 2 |
3 | Intermediate relay | 2 |
4 | Contactor | 2 |
5 | 3-17 inner-six hexagon spanner | 1 |
6 | 12 inch moving spanner | 1 |
7 | 15 inch moving spanner | 1 |
8 | Φ75*50*12 Oil Envelope | 2PCS |
9 | Cutter for granules cutting | 20PCS |
10 | Mesh screen | 10PCS |
11 | Temperature control meter | 2PCS |
12 | Thermal relay | 2PCS |
13 | Option swtich | 2PCS |
14 | Chopper | 2PCS |
15 | Travel swtich | 1PCS |
Spare Parts Suggested To Buy:
No | Name | Unit | Unit Price | Amount |
1 | Belt | 1 set | USD500.00 | USD500.00 |
2 | Blades for shredder | 1 set | USD2,200.00 | USD2,200.00 |
3 | Blades for compactor | 1 set | USD785,00 | USD785,00 |
4 | Heaters for screw/barrel | 1 set | USD2,350.00 | USD2,350.00 |
5 | Screw | 1 set | USD2,800.00 | USD2,800.00 |
6 | Pressure sensor | 1 set | USD600.00 | USD600.00 |
7 | Die Face Mould | 1 set | USD470.00 | USD470.00 |
8 | Filter 80Mesh | 2 roll | USD200.00 | USD400.00 |
Total | USD10,105.00 |
